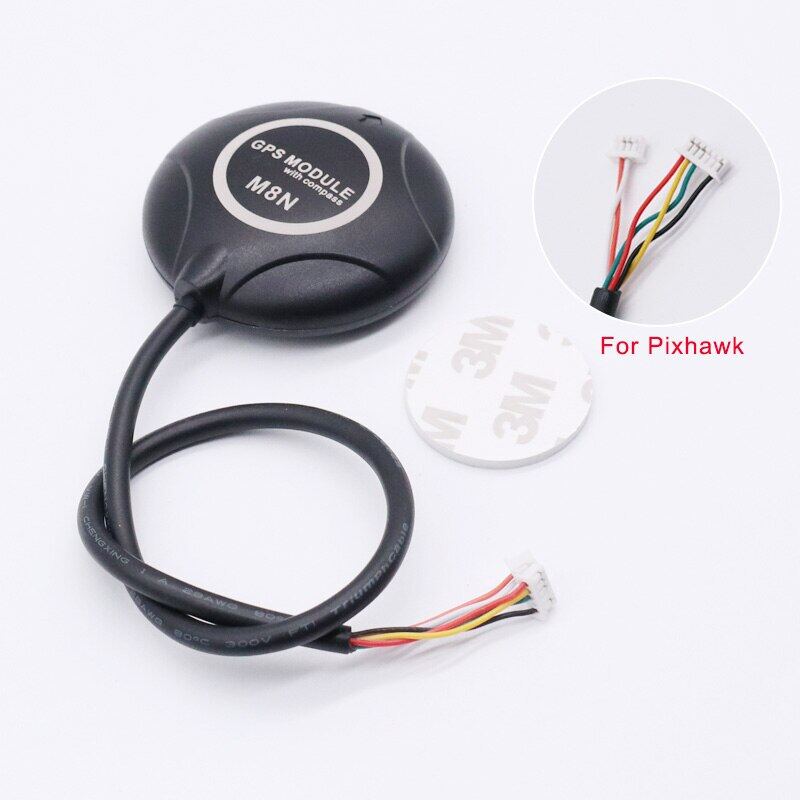

New Ublox M8N Super Pro GPS+Compass for Pixhawk APM 2.6/2.8

• Supports GPS/ Galileo / BDS/ GLONASS/ QZSS/ SBAS
• Low power consumption, high accuracy. The return-home accuracy is highly raised.
• With optimized module and internal compass. The refresh speed is raised to 10HZ.

• 72 channels, U-blox M8 engine
• GPS L1 C/A, Glonass L10F
• QZSS L1 C/A, BDSS B1
• Galileo-ready E1B/C (need external flash memory)
• SBAS L1 C/A, WAAS, EGNOS, MSAS

Capture

• Cold start: 26s
• Warm start: 1s

• Following and Navigating: -167dBm
• Re-capture: -160dBm
• Cold start: -148dBm
• Warm start: -156dBm

• Single GNSS: 18Hz
• Sync GNSS: 10Hz
• Speed accuracy: 0.1 m/s
• Navigation accuracy: 0.3 degree
• Horizontal locating accuracy: 2.0m CEP
• Time pulse signal frequency: 0.25Hz-10 mHz

• Gravity: <4G
• Height: 50000 M
• Speed: 500m/s
