รีซีฟ ExpressLRS BAYCK 2.4G มีชิป PA LNA เพิ่มสัญญาณแรงขึ้น Wifiในตัว Telemetry 100mW ระบบ ELRS Radio Nano Long Range พร้อม T-type Antenna 11X18mm สำหรับโดรนซิ่ง FPV

BAYCK Nano 2400RX ExpressLRS ELRS 2.4GHz Open Source CRSF Protocol High Refresh Rate Ultra-Small Long Range Mini Receiver for RC Drone

receivers are based on ExpressLRS open source architecture and programs, we have released 3 types of RX receivers, all use ESP8285mcu. You can upgrade the firmware via WIFI. Usually, you only need to supply power to the receiver, when the remote control is off, you can find the ExpressLRS hotspot after 60s by default, connect to this hotspot through a computer or mobile phone, the password is expresslrs, and then you can access 10.0.0.1 to upload the receiver hotspot.

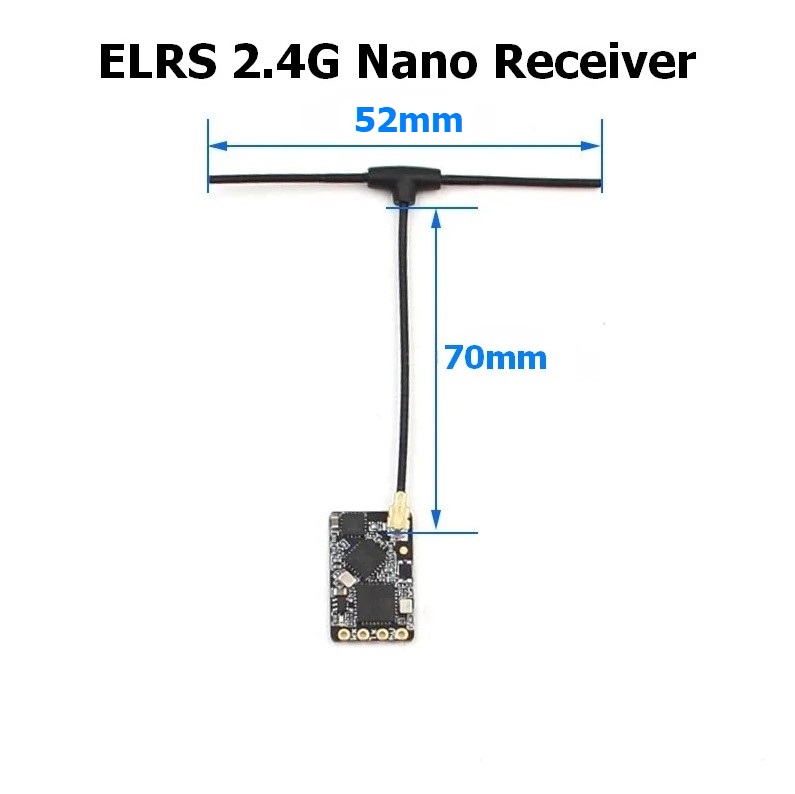

The Nano2400RX receiver has a power amplifier (PA+LNA), so it has a 100mW telemetry output and better sensitivity at longer distances. It adopts the IPEX1 generation antenna base and cooperates with an external dipole T-type antenna.

Description:

แบรนด์: bayck
รุ่นที่ได้รับ: elrs 2.4G NANO
Freq RF: 2.4GHz

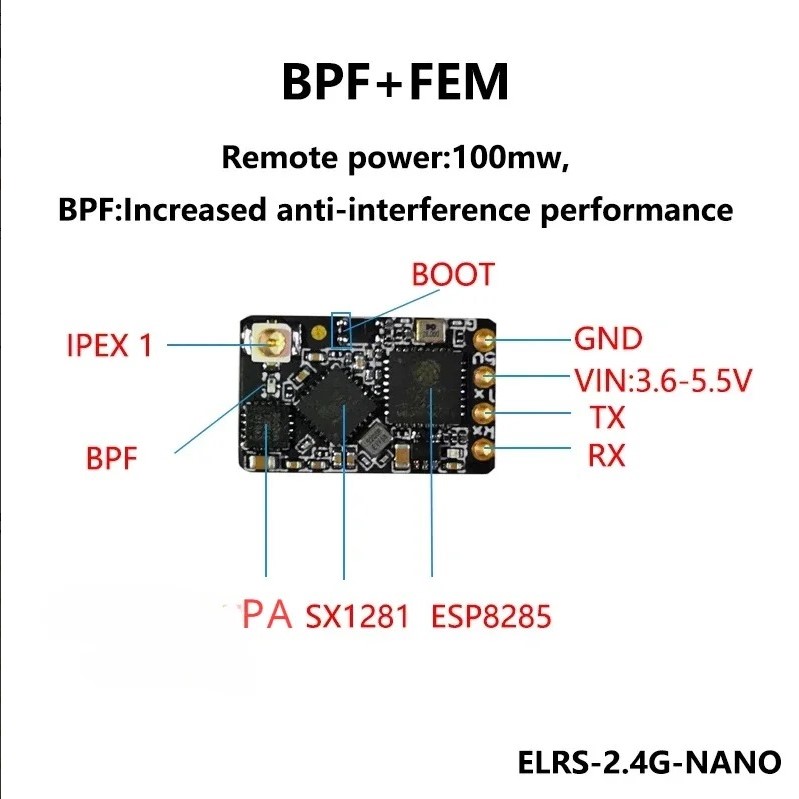

IC:SX1281 + ESP8285
กำลังส่ง Telemetry: 100mW
สีที่: สีดำ
คอนเนคเตอร์ที่ได้: IPEX 1
พลังงานอินพุตที่ได้รับ: 3.6-5.5V
น้ำหนัก: 0.4กรัม (รับเท่านั้น)
ขนาด: 11มม. * 18มม.
เฟิร์มแวร์: BAYCKRC 2.4GHz Nano RX

• แพคเกจรวม:

• ตัวรับสัญญาณนาโน X 1
  เสาอากาศรับสัญญาณชนิด T x 1
  ท่อหดความร้อน x 1
  ลวดซิลิโคน30AWG x 4
  1x4pin เชื่อมต่อ2.54มม. x 2

Indicator status:

• Double flash: code matching mode

• Slow flashing: No transmission signal is received

• Steady on: receive the transmit signal

• Fast flashing: WIFI upgrade mode

Linking steps:

• 1. After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time,

• disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the

• LED will start to flash double, and the receiver will enter the code matching mode.

• 2. After correctly connecting the 2.4G ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control,

• the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.

• 3. After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

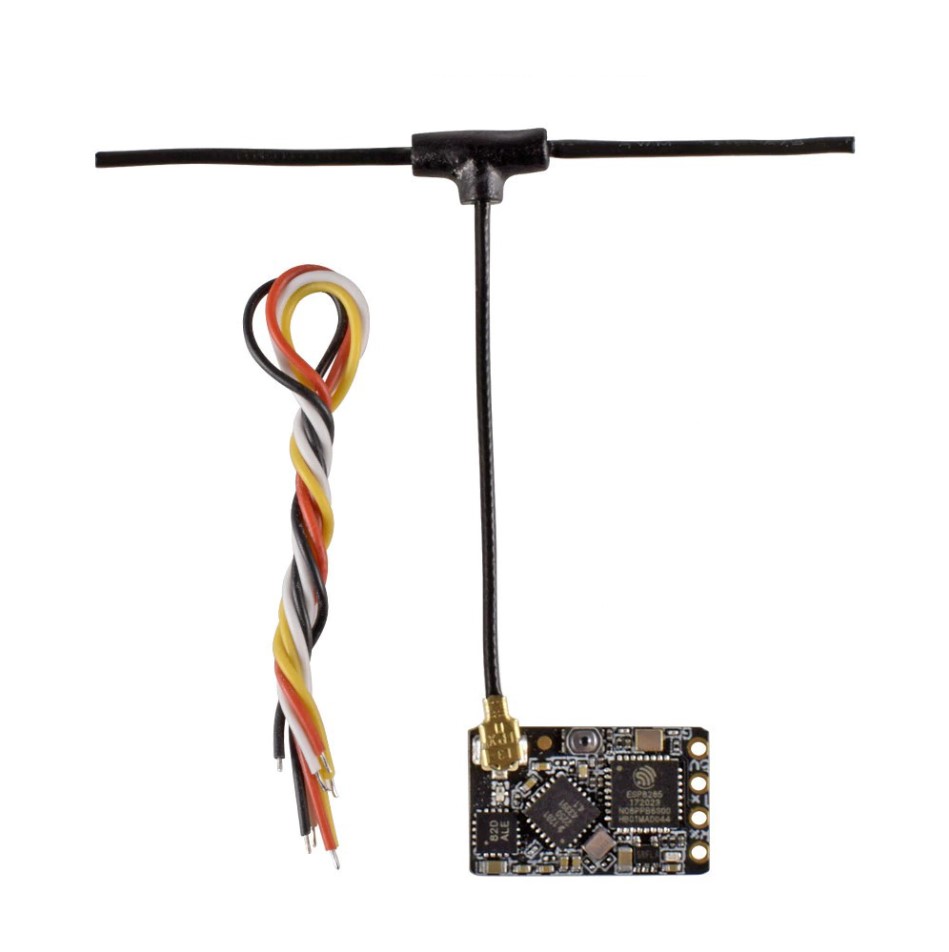

Shipping package:

• Receiver * 1

• Wire * 4

• T-type antenna *1
