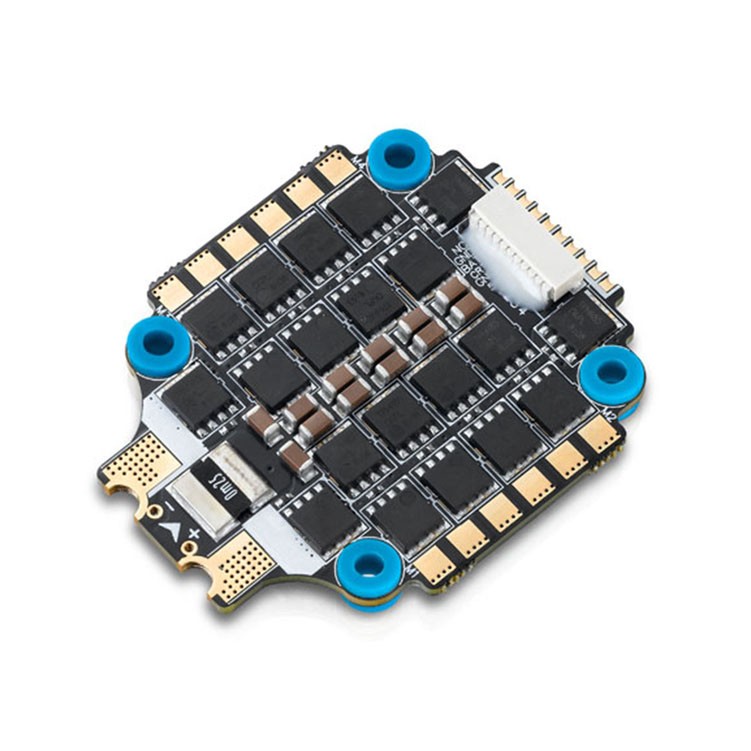

Hobbywing XRotor 60A 4in1 DS1200 BLHeli_3 3-6s Xrotor60A

With a similar size of a FC, the 4IN1 ESC includes 4 high performance 60A BLHeli 32 DShot1200 ESCs, a 5V BEC and a voltmeter which allows FC to monitor the amp & volt in real time.

Large-size MOSFETs imported from Japan make the 4IN1 ESC have great voltage/current endurance. The use of high performance 32-bit microprocessors, 3-in-1 drive ICs, imported high quality ceramic capacitors guarantees less heat, higher efficiency and rapider response.

The ESC flashed with the 3rd-generation BLHeli-32 firmware has great performance & rich functions and supports adjusting parameters or upgrading firmware.

The ESC firmware uses hardware generated motor PWM for smooth throttle response and silent operation. Damped light does regenerative breaking, causing very fast motor retardation, and it inherently also does active freewheeling.

This ESC is designed for FPV racing.

Features:
Compact Design
Powerful, 4x 60A
BLHeli-32 Firmware Ready
Mode: PWM, OneShot125, OneShot42, MultiShot, DShot 150/300/600/1200
Damped Light Mode

Technical Specifications:
Current Cont./Peak: 4x 60A/80A
Input Voltage: 3s - 6s LiPo
BEC: 5V/0.6A
Firmware: BLHeli-32 Firmware
Mode: OneShot125, OneShot42, MultiShot, DShot150/300/600/1200
Dimensions: 52x42x6.6mm
Weight: 15g
Applications: 130-300mm FPVs

Scope of  Delivery:
1x ESC 4IN1
4x Shockabsorber
1x Manual
