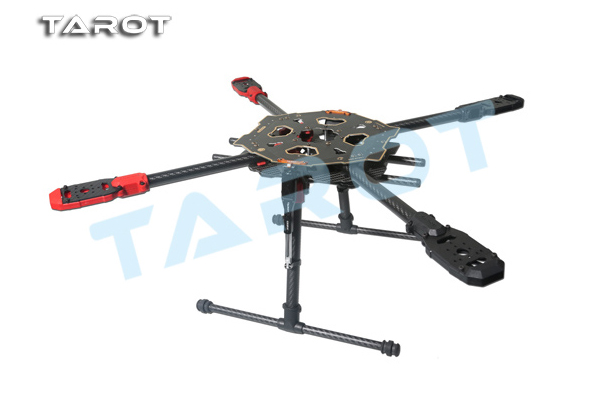

Tarot 650 Sport เฟรมโดรน 4 แขน (พร้อม Retract พับขาได้) TL65S01

Product Description:
      TAROT 650 SPORT quadrocopter 650 series rack chassis replacement, TAROT innovation designed by the company, with a number of patented technologies. 650SPORT standard new electric folding tripod, electric retractable tripod controller TL8X002, a lower center of gravity, more stable large installation space optimization design, exterior design has a strong impact perspective.
     Body with high strength composite matte gold process of the PCB, PCB board integrated power supply wiring, electrical wiring and other transfer more efficient, safe and provide adequate space for the installation of various flight control systems. New Motor Brushless ESC installed new seat position, harness protection card, clip-on design easy to adjust the motor base level. Color eye-catching color overall design has a strong impact perspective effect, provide a good visual direction for the body in the air.

     TAROT 650SPORT quadrocopter rack for portability demanding users to design, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance, fire observation, life exploration, cable transmission line, farm monitoring, and other high performance requirements for mobile, equipment and requires a longer application load small aircraft when the field is left blank.
State Intellectual Property have been granted TAROT HM Ltd. This product is four patents:


 specifications:

Wheelbase Diameter: 600MM
Rotor Size: 12-15 inch T series carbon fiber propeller
Brushless motor: 4S / 600-650KV size 3506-3515 brushless motor
6S 340KV 4114 multi-rotor disc brushless motor
Battery Specifications: 14.8V -22.2V, 4000-10000MHA
Brushless ESC: 20-40A



Great all around drone
You can put a lot of different gadgets on the drone, for lighter payload you can use lighter and cheaper config like small motors and battery, if you want to go big, just increase the size of the motor and props, we like this 650 Sport.

Motorized Landing Gear
Came with the package, 100% made by Tarot, fully integrated with the 650 Sport Airframe.



Retract and Deploy with a flip of a switch
The two landing gears connect to a controller, and connect the controller to the RC receiver.




Four rotor drones will have longer flight time, but less payload capacity
Two motor less then Hexacopter, that means less energy consumption and fly longer.



The new designed Integrated PCB Upper Deck
The Tarot 650 Sport has a PCB Upper Deck and Carbon Fiber Lower Deck. You can solder the ESC's power directly onto the PCB Upper Deck, no need to handle a bunch of power cables, much clean layout in the drone.


The soldering points on the PCB Board
This is the PCB Board of the FY680-Pro, very similar to the 650 Sport.




Light weight and easy to adjust motor mount
Support motor up to 45mm Dia., with 16mm, 19mm, 25mm and 27.7mm hole spacing.





Came with Mounting Rail and Movable Battery Mount
No need to spend money for the mounting rail. It is 60mm apart, you can put T-2D Gimbal on it and move that battery position for best C.G.




A Portable 650 Size Hexacopter Frame
Easy transportation is very important, especially when you try to put it in the car by yourself...



Fold it up, it's very portable
It's foldable, easy to put in the back seat of your car.




Specifications :
- Frame weight : 750g
- Arms diameter : 16mm
- Drone dia : 650mm
- Center body dimension : 190 x 200 x 2.0mm
- Mount mounting hole : 16mm hole x 2 / 19mm hole x 2 / 25mm hole x 4 / 28mm hole x 3
- Drone's weight (everything it needs to fly) : around 2.3kg
- Payload (it can carry) : 1~1.3kg

Our Flight Reference :
- Battery Supply : One 4S 14.8V 5500mah for 13 minutes
- Motor : Tarot 4006 620kv Motor
- ESC : Hobbywing Platinum 30A-OPTO
- Propeller : Tarot 1355 Carbon Propellers
- Carrying : Tarot T-2D Brushless Motor Gimbal, TS352 FPV Transmitter, GoPro Hero 3+ (They weight about 700g)


This package includes :
1. 1 X Tarot 650 Sport Airframe and Motorized Landing Gear
2. 1 X Controller for the Landing Gears
3. 1 X Manual with English
4. Battery Velcro Tape
